PE insulation pipes are increasingly popular in industrial settings due to their excellent thermal insulation properties and durability. However, proper installation is crucial to ensure optimal performance and longevity. This article provides detailed installation guidelines for PE insulation pipes in industrial applications.
Overview of PE insulation pipesKey considerations for installationStep-by-step installation processCommon installation mistakesConclusion

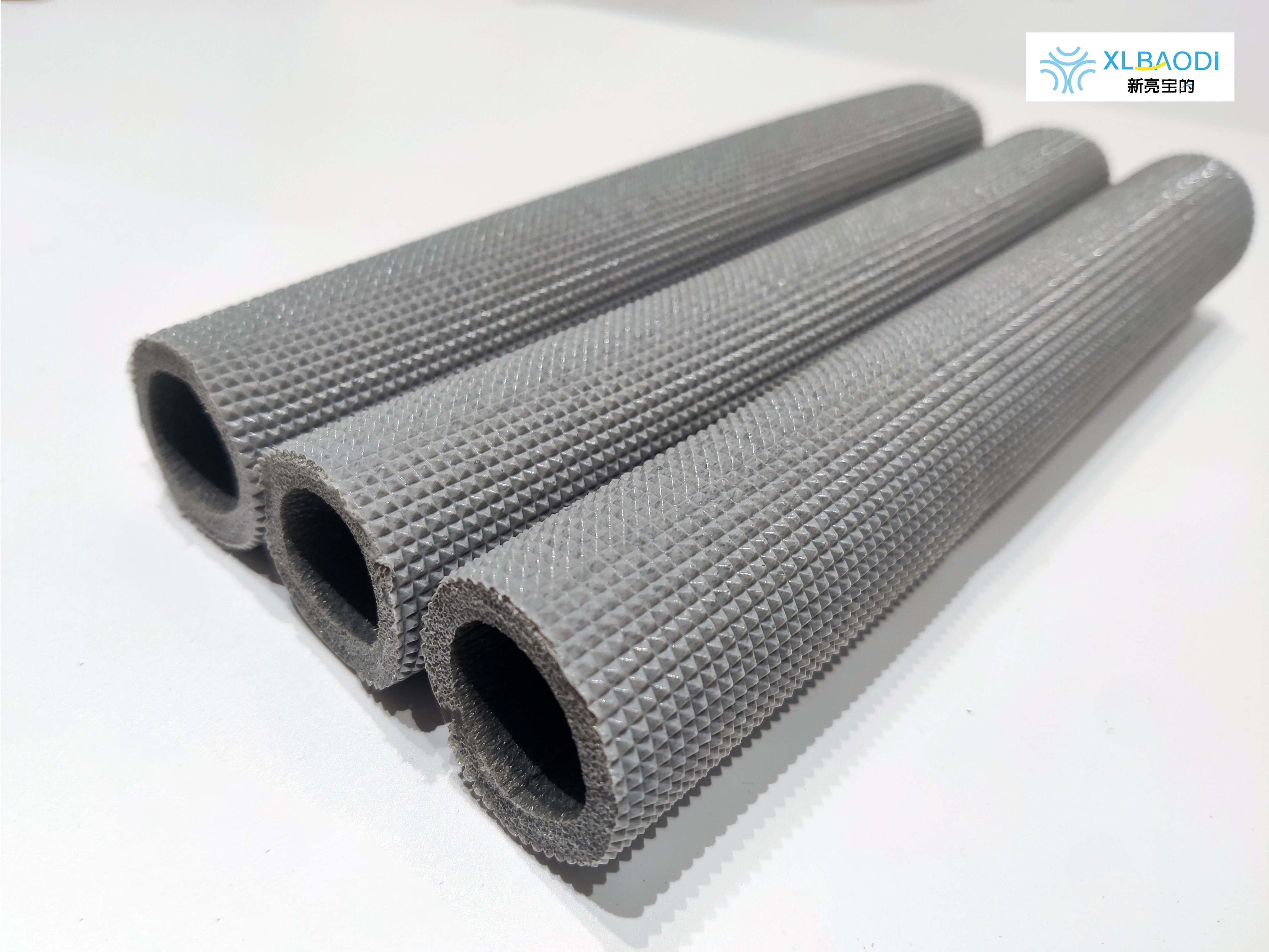

Polyethylene (PE) insulation pipes are widely used in various industrial applications, including heating, cooling, and process piping systems. These pipes consist of a polyethylene outer shell, an inner pipe for fluid transport, and insulation material sandwiched between the two. PE insulation pipes offer several advantages, making them a preferred choice in many industrial settings.
PE insulation pipes provide excellent thermal insulation, which helps to minimize heat loss or gain. This results in energy savings and improved process efficiency. The polyethylene outer shell is highly resistant to chemicals, corrosion, and UV radiation, ensuring durability and longevity. Additionally, PE insulation pipes are lightweight and flexible, making them easy to handle and install.
PE insulation pipes are commonly used in industrial applications such as district heating and cooling systems, chilled water distribution, hot water supply, and process piping. They are suitable for both above-ground and underground installations and can be used in a wide range of temperature and pressure conditions.
There are different types of PE insulation pipes available in the market, each designed for specific applications. Some common types include:
– PE-RT (polyethylene of raised temperature resistance) pipes: These pipes are suitable for high-temperature applications up to 90°C.
– PEX (cross-linked polyethylene) pipes: PEX pipes are known for their flexibility and resistance to high temperatures and pressures.
– PE-Xa, PE-Xb, and PE-Xc: These are different methods of cross-linking polyethylene, each with its own characteristics and advantages.
Proper installation of PE insulation pipes is essential to ensure optimal performance and longevity. Several key considerations should be taken into account during the installation process.
Before installation, it is crucial to prepare the site properly. This includes clearing the area of any debris, vegetation, or obstacles that may hinder the installation process. The ground should be leveled and compacted to provide a stable foundation for the pipes.
PE insulation pipes should be handled with care to avoid any damage. They should be stored in a cool, dry place, away from direct sunlight and heat sources. It is important to stack the pipes properly to prevent deformation or crushing.
Installation activities should be carried out with minimal impact on the environment. This includes managing noise, dust, and waste generated during the installation process. Proper measures should be taken to prevent soil and water contamination.
Safety should always be a top priority during the installation of PE insulation pipes. Workers should be equipped with appropriate personal protective equipment (PPE) such as gloves, safety glasses, and hard hats. It is essential to follow safety guidelines and regulations to prevent accidents and injuries.
To ensure the quality of the installation, it is important to adhere to industry standards and specifications. This includes conducting regular inspections and tests to verify the integrity of the pipes and insulation. Any defects or issues should be addressed promptly to avoid long-term problems.
The installation process for PE insulation pipes involves several steps, each requiring careful attention to detail. Following a systematic approach can help ensure a successful installation.
If the pipes are to be installed underground, excavation and trenching are necessary. The depth and width of the trenches should be determined based on the specific requirements and local regulations. Proper shoring and bracing should be used to prevent trench collapse.
PE insulation pipes can be joined using various methods, depending on the application and pipe size. Some common jointing methods include:
– Butt fusion: This method involves heating the ends of two pipes and pressing them together to create a strong, continuous joint.
– Electrofusion: Electrofusion fittings with built-in heating elements are used to join the pipes by applying electrical current.
– Mechanical joints: These joints use fittings such as couplings, elbows, and tees to connect the pipes.
Once the pipes are joined, insulation is added to minimize heat loss or gain. The insulation material is typically foam or fiberglass, which is wrapped around the pipes. After insulation, the trenches are backfilled with suitable material, ensuring proper compaction to avoid settlement.
Before putting the system into operation, thorough testing and commissioning are essential. This includes pressure testing, leak detection, and insulation resistance testing. Any issues or deficiencies should be addressed before the system is used.
Despite careful planning and execution, installation mistakes can occur, leading to costly repairs and disruptions. Some common installation mistakes to avoid include:
Insufficient or inadequate pipe support can cause sagging, misalignment, and excessive stress on the pipes. It is important to provide proper support at regular intervals and at critical points such as changes in direction and elevation.
Using the wrong insulation thickness can result in excessive heat loss or gain, reducing the system’s efficiency. The insulation thickness should be determined based on the specific application, temperature, and environmental conditions.
PE insulation pipes expand and contract with temperature changes. Neglecting to account for this can lead to pipe damage, joint failure, and system malfunction. Proper expansion joints and allowances should be incorporated into the design and installation.
Insufficient sealing and protection can expose the pipes and insulation to moisture, chemicals, and external elements, compromising their integrity. It is crucial to use appropriate sealing materials and protective coverings to prevent damage.
Each type of PE insulation pipe may have specific installation requirements and recommendations from the manufacturer. Failure to follow these guidelines can result in poor performance and premature failure. It is essential to thoroughly review and adhere to the manufacturer’s instructions.
Proper installation of PE insulation pipes in industrial settings is critical to ensure optimal performance, energy efficiency, and longevity. By following the installation guidelines outlined in this article, industrial facilities can achieve reliable and cost-effective piping systems. It is essential to prioritize site preparation, proper handling and storage, environmental considerations, safety precautions, and quality assurance throughout the installation process. Avoiding common installation mistakes and adhering to manufacturer guidelines will further contribute to the success of the installation. With careful planning and execution, PE insulation pipes can provide long-lasting and efficient solutions for industrial applications.
