Improper HVAC pipe insulation is rarely a minor DIY oversight. Instead, you should consider it a systemic vulnerability. It actively degrades compressor lifespan. It invites severe structural moisture damage into your home. Furthermore, it quietly inflates your utility bills year after year. At the crucial decision stage, you might vet a contractor's scope of work. Alternatively, you might procure materials for an internal maintenance upgrade. In either scenario, knowing exactly how insulation fails remains vital. It is just as critical as knowing why you need it in the first place.
This guide deconstructs the most common failure points in AC refrigerant line insulation. We provide an evidence-based framework for your next project. You will learn how to specify, evaluate, and install materials correctly. Proper installation protects your equipment and ensures maximum energy efficiency. By understanding these core principles, you prevent costly breakdowns and long-term structural decay.
Energy ROI: Proper insulation stops the 16–23% energy loss typical of bare pipes, netting an estimated 4–5% annual efficiency gain (DOE data).
Selective Application: Only the larger suction (cold) line requires insulation; wrapping the smaller liquid (hot) line traps heat and reduces system efficiency.
The Vapor Barrier Rule: Never layer new vapor-barrier insulation over an old one; doing so traps moisture, leading to severe copper corrosion and mold.
Structural Integrity: Over-tightening fasteners (like zip ties) crushes closed-cell foam, instantly destroying its R-value and thermal resistance.

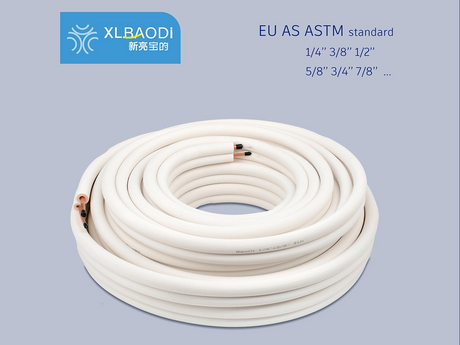

According to baseline metrics from the U.S. Department of Energy (DOE), compromised refrigerant lines lose significant thermal energy. Uninsulated lines shed up to 23% of their cooling capacity before the air even reaches your indoor handler. This massive loss forces your cooling system to work much harder. Proper application of AC Insulation Pipes yields measurable year-over-year cost reductions. Every inch of bare copper acts as a heat sink. It draws in warm ambient air. This forces your air conditioner to consume considerably more electricity just to reach the target indoor temperature.
Protecting the compressor represents another major financial factor. We must look at basic HVAC thermodynamics to understand this risk. The larger suction line carries cold, vaporized refrigerant back to the compressor. If poor insulation allows this line to absorb excess ambient heat, it disrupts the entire cooling cycle. The refrigerant might struggle to maintain optimal pressure. Conversely, severe condensation and temperature imbalances can lead to a dangerous condition known as liquid floodback. Liquid refrigerant entering the compressor severely stresses internal mechanical components. Over time, it destroys the unit entirely. Replacing a compressor is an enormous, avoidable expense.
Finally, we must address moisture and structural liability. Uninsulated cold lines sweat continuously in warm weather. Condensation forms rapidly on the cold copper surface because it drops below the ambient dew point. This unchecked dripping causes massive problems inside walls and crawlspaces. It leads to saturated drywall, ceiling stains, and severe wood rot. Mold remediation costs can quickly skyrocket into the thousands. The price of premium insulation is practically nothing compared to these expensive structural repairs.
Many homeowners and amateur installers wrap both refrigerant lines blindly. They assume more insulation automatically equals better efficiency. This is fundamentally incorrect. You must clearly distinguish between the two separate lines. The large suction line feels cold to the touch. You must insulate this cold line. The smaller liquid line feels very warm. It relies on ambient air to dissipate internal heat safely. If you insulate the small hot line, you trap the heat inside the system. This error actively reduces your system's overall cooling efficiency.
Taking the lazy route causes severe hidden damage. Installers often wrap new insulation directly over old, sweating foam. This action creates a double vapor barrier. Two separate vapor barriers lock wet air securely in the middle layer. The trapped moisture accelerates copper pipe corrosion dramatically. You must mandate stripping old materials entirely. Alternatively, completely slice open the old vapor barrier before over-wrapping. The copper pipe must breathe or remain completely sealed in one single, dry layer.
Installers frequently use heavy-duty zip ties to secure foam sleeves. They pull these nylon ties extremely tight. This action crushes the closed-cell structure of the foam. Thermal R-value relies entirely on microscopic air pockets trapped inside the material. Ties must secure the material without compressing it. If you crush the foam, the insulation value in that specific spot drops to near zero. A pinched tube allows immediate heat transfer and localized condensation dripping.
Bending straight tubular sleeves around 90-degree pipe elbows is a common, highly damaging shortcut. This poor technique leaves stretched seams on the outside edge. It creates exposed gaps where the foam inevitably pulls apart over time. You should require 45-degree mitered cuts at all directional changes. Installers must slice the foam carefully to form a perfect right angle. They must seal these joined corners continuously using appropriate HVAC tape. This ensures a uniform thermal barrier across the entire bend.
Pipes eventually enter the exterior wall of the building. Installers often leave this crucial gap completely unsealed. This open gap allows weather, moisture, and pests to enter the structure easily. It compromises your home's building envelope. Specify the use of retrofit wall outlet covers. Combine these rigid plastic covers with high-quality silicone caulk. This combination creates an airtight transition. It protects your interior spaces from severe external climate factors.
Standard black HVAC foam absorbs heavy solar radiation. The intense solar heat accelerates material brittleness. The ultraviolet rays break down the molecular polymer chains inside the foam. Over just a few seasons, the material crumbles into dust. We strongly recommend wrapping exterior foam in highly reflective HVAC tape. Products like 3M 3350 work exceptionally well. You can also specify white, UV-resistant jacketing right out of the box. These upgrades remain mandatory for high-exposure zones, especially on southern-facing exterior walls.
You must also consider severe physical and biological threats. Routine landscaping activities often destroy unprotected foam. Weed trimmers easily slice through standard insulation in seconds. Extreme weather events, such as hail, cause deep abrasions and tears. Wildlife, including rodents and birds, eagerly chew through standard foam to gather nesting material. We suggest adding PVC jacketing or heavy-duty elastomeric armor. These rigid barriers protect ground-level commercial installations. They also safeguard rural residential systems from constant animal damage.
Extreme climates require very specific engineering adaptations. High-humidity environments demand thicker wall requirements for your insulation. Thicker foam prevents surface condensation by keeping the outer layer above the ambient dew point. Extreme freeze zones face completely different challenges. The Department of Energy outlines specific regional guidelines for these freezing areas. You often need to pair standard insulation with electrical heat trace tape. This combination prevents critical system freezing during severe winter storms.
Selecting the correct material dictates your system's longevity. Not all foams perform equally in harsh outdoor environments. You must match the material to the specific application.

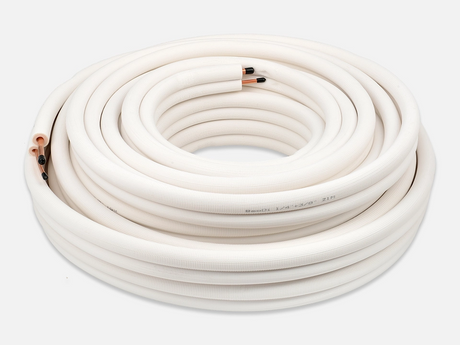

This remains the undisputed industry standard for residential AC applications. It offers an excellent cost-to-performance ratio. The material features inherent moisture resistance. It does not absorb liquid water easily. It is also incredibly easy to install. Manufacturers often supply it pre-slit from the factory. It usually includes pressure-sensitive adhesive strips along the seam. This setup makes it perfect for long, straight pipe runs down exterior walls.
Elastomeric rubber is highly flexible and durable. This makes it superior for complex commercial runs. It handles multiple sharp bends and tight spaces beautifully. However, it requires highly precise installation methods. You must use compatible liquid adhesives for seam sealing. Standard acrylic tape often peels off rubber surfaces over time. It costs significantly more upfront. However, the long-term durability in complex layouts remains unmatched.
Fiberglass performs exceptionally well for high-heat applications. You will often see it wrapped securely on industrial steam pipes. However, it is highly susceptible to moisture absorption. It acts exactly like a sponge when exposed to condensation. Therefore, fiberglass is generally the absolute wrong choice for sweating AC refrigerant lines. Wet fiberglass loses all its thermal resistance instantly. It also promotes rapid, dangerous mold growth directly against the copper pipe.
Material Type | Best Application | Moisture Resistance | Flexibility |
|---|---|---|---|
Polyethylene Foam | Residential straight lines | High | Moderate |
Elastomeric Rubber | Complex commercial lines | High | Excellent |
Fiberglass Wrap | High-heat steam pipes | Very Low | Moderate |
Energy Retained by Insulation Thickness (DOE Baselines)
Bare Pipe (0"):
0% Retained
3/8" Thickness:
Moderate Gain (~12% Retained)
3/4" Thickness:
Optimal Gain (~23% Retained)
Following a strict protocol guarantees a successful, long-lasting installation. Missing even a single step compromises the entire vapor barrier.
The AC system must be shut off completely before you begin working.
The copper pipe must be 100% dry to the touch.
Wipe away all dirt, grease, and existing moisture using a clean rag.
Wrapping new foam over existing condensation traps water directly against the pipe.
Measure the outside pipe diameter precisely using calipers or a measuring tape.
Select insulation with an inner diameter that matches the pipe exactly.
Allow a 1/2-inch overlap tolerance in linear length when cutting sections.
This extra length comfortably accommodates natural thermal expansion and contraction.
A tight linear fit prevents the seams from splitting open during severe temperature shifts.
Do not rely solely on the factory-applied pressure-sensitive adhesive. The factory adhesive degrades over time. It frequently fails under extreme temperature changes. You must reinforce all horizontal seams mechanically. You must also securely wrap all butt joints. Use specialized acrylic or foil HVAC tape for this task. Tape provides vital mechanical strength. It ensures continuous vapor-barrier integrity. Press the tape firmly to eliminate all air bubbles. Check every connection point twice. Proper sealing stops warm air from infiltrating the cold copper surface.
Proper AC pipe insulation is a high-ROI intervention. It is a highly effective, low-cost upgrade. It actively protects expensive mechanical equipment. It optimizes your overall energy use. Leaving lines bare or improperly wrapped guarantees severe system inefficiency. We strongly advise you to audit your current exterior lines today. Look closely for cracking, excessive sweating, or missing foam sections. Select the correct closed-cell materials based on your specific climate exposure. Do not simply buy the cheapest foam tube available at the local hardware store. Investing in premium materials and meticulous installation pays immediate dividends. It extends your compressor's life and consistently lowers your monthly utility bills.
A: No. If the old insulation is wet or has its own vapor barrier, layering traps moisture. This trapped water accelerates copper corrosion and severe mold growth. You must strip the old material completely. Ensure the pipe is totally dry. Finally, apply a single continuous layer of appropriately sized, thicker insulation.
A: No. Only the larger, colder suction line requires insulation. Insulating the smaller, warmer liquid line prevents it from shedding heat to the ambient air. Wrapping this smaller line actively traps heat inside. This mistake can drastically reduce your HVAC system's overall cooling efficiency.
A: You should inspect it annually. The best time is at the end of winter or early spring. Depending on UV exposure and physical wear, standard unshielded foam typically requires replacement every 3 to 5 years. Upgrading to UV-resistant or shielded insulation significantly extends this lifespan.
