Insulated Copper Tube
Author: Site Editor Publish Time: 2026-05-28 Origin: Site
Did you know insulated copper tubes can cut HVAC energy loss by 75%? Copper tubing is vital in both homes and businesses. Insulation prevents condensation and improves efficiency. In this post, you’ll learn why insulated copper tubes matter and how they boost HVAC performance and durability.

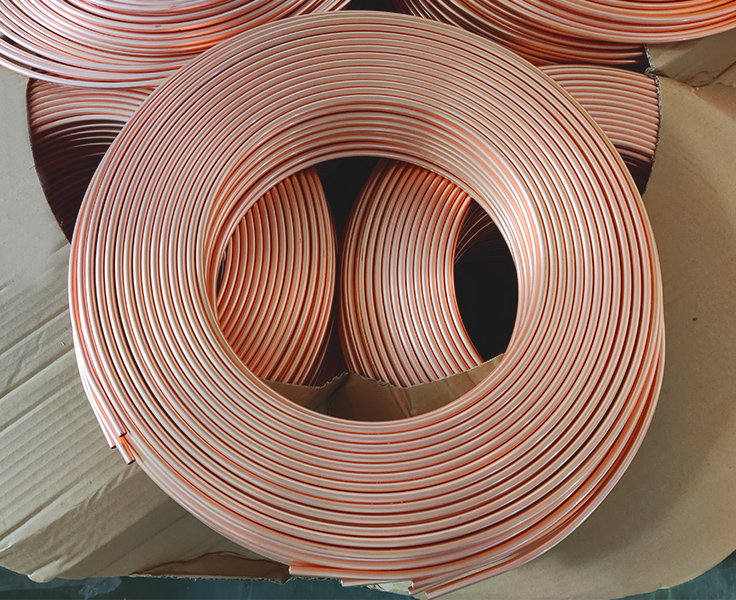

Standard copper tubes are the backbone of many HVAC systems. Made from nearly pure copper, these tubes come in various thicknesses and sizes, typically categorized as Type K, L, or M. Type K has the thickest walls, ideal for underground or high-pressure applications. Type L is the most common for commercial HVAC, offering a balance of strength and flexibility. Type M is thinner, often used in residential settings where pressure demands are lower.
Their key features include:
High durability: Copper resists corrosion and withstands pressure well.
Excellent thermal conductivity: Copper transfers heat efficiently, crucial for refrigeration and air conditioning.
Versatility: Suitable for a wide range of HVAC applications.
Long lifespan: With proper care, copper tubes can last decades.
Insulated copper tubes start as standard copper tubes but have a layer of insulation wrapped or bonded around them. The insulation typically uses polyethylene (PE) foam or rubber-based materials, designed to:
Prevent condensation: Stops moisture from forming on the tube surface.
Reduce thermal loss: Maintains refrigerant temperature inside the tube.
Protect against UV and physical damage: Shields tubes in outdoor or exposed environments.
This insulation is often pre-applied during manufacturing, making installation easier and more consistent.
Feature | Standard Copper Tubes | Insulated Copper Tubes |
|---|---|---|
Surface | Bare copper | Copper with foam or rubber insulation |
Condensation risk | High, especially in humid areas | Low, insulation prevents moisture build-up |
Thermal loss | Higher due to direct exposure | Reduced heat loss, better refrigerant temperature control |
UV resistance | Limited, can degrade outdoors | Enhanced protection from UV rays |
Installation | Requires separate insulation | Quicker, insulation already applied |
Energy efficiency | Lower, more heat exchange with environment | Higher, less energy wasted |
Cost | Lower upfront | Higher due to added insulation layer |
Choosing insulated copper tubes makes sense when:
Condensation control is critical, such as in humid climates or indoor environments where moisture can cause damage.
Energy efficiency is a priority, especially in commercial HVAC systems aiming to reduce operating costs.
Outdoor installations require protection from UV rays and physical wear.
Installation speed and convenience matter, as pre-insulated tubes reduce labor time.
System reliability and longevity are important, as insulation protects tubes from environmental stress.
In contrast, standard copper tubes are suitable when:
Insulation will be applied separately or customized on-site.
The environment is dry, and condensation risk is low.
Budget constraints prioritize lower material costs.
High-temperature or specialized applications where insulation might not be necessary.
Note: Insulated copper tubes can reduce heat loss by up to 75% compared to standard tubes, significantly improving HVAC system efficiency and reducing energy costs.
Insulation around copper tubes acts as a barrier, preventing warm, humid air from touching the cold surface of the tube. Without insulation, moisture in the air condenses on the tube, causing water droplets that can lead to corrosion and damage. Insulated copper tubes stop this condensation by keeping the tube surface temperature closer to the air temperature. This also reduces thermal loss — the unwanted transfer of heat between the refrigerant inside and the surrounding environment. By minimizing heat exchange, the refrigerant stays at its intended temperature, improving system efficiency.
Maintaining the refrigerant’s temperature is crucial for HVAC systems to run efficiently. Insulated copper tubes help keep refrigerant cool in air conditioning or warm in heating systems by reducing heat gain or loss. This stable temperature means the compressor works less to reach desired levels, cutting energy use and wear on the system. Improved temperature control also enhances overall system performance, ensuring faster cooling or heating and better comfort for occupants.
Heat loss is measured in BTUs (British Thermal Units) per hour per foot of tubing. Standard, uninsulated copper tubes lose between 150 to 200 BTU/hr per foot, depending on environmental conditions. Insulated copper tubes, however, reduce this loss dramatically to about 30 to 50 BTU/hr per foot. This means insulation cuts heat loss by up to 75%, a significant boost in energy efficiency. The table below summarizes this comparison:
Copper Tube Type | Heat Loss (BTU/hr per ft) |
|---|---|
Standard Copper Tube | 150 – 200 |
Insulated Copper Tube (PE foam insulation) | 30 – 50 |
Though insulated copper tubes cost more upfront, they save money over time by lowering energy bills. Reduced heat loss means HVAC systems consume less power to maintain temperatures, which can translate to substantial savings, especially in larger commercial buildings or homes in extreme climates. Additionally, by easing the compressor's workload, insulation helps extend equipment life, cutting maintenance and replacement costs. Over years of operation, these benefits often outweigh the initial investment in insulated tubing.
Tip: When designing or upgrading HVAC systems, prioritize insulated copper tubes in humid or outdoor environments to maximize energy savings and reduce condensation-related issues.
Insulated copper tubes offer superior corrosion resistance compared to bare copper tubes. The insulation layer acts as a protective barrier, preventing moisture and corrosive elements from coming into direct contact with the copper surface. This is especially important in humid or coastal environments where exposure to salt and moisture can accelerate corrosion. By reducing corrosion risk, insulated tubes maintain structural integrity longer and avoid leaks or failures that can disrupt HVAC operation.
Copper itself resists corrosion, but prolonged exposure to sunlight can degrade insulation materials. High-quality insulated copper tubes use UV-resistant foam or rubber insulation that shields the copper and retains its protective properties even under intense sunlight. This UV resistance is crucial for outdoor HVAC systems, rooftop units, or exposed piping where direct sun can cause insulation cracking or breakdown. Maintaining insulation integrity outdoors helps preserve energy efficiency and prevents premature tube deterioration.
The combined effect of corrosion protection and UV resistance extends the lifespan of insulated copper tubes significantly beyond standard tubes. Reduced exposure to environmental damage means fewer repairs and replacements over the system’s life. This durability translates into lower maintenance costs and less downtime. HVAC systems using insulated copper tubes enjoy more reliable performance and longer intervals between service calls, making them a cost-effective long-term choice.
HVAC systems often undergo rapid temperature changes and mechanical vibrations from compressors and fans. Insulated copper tubes withstand these stresses better due to their robust construction and protective insulation. The insulation cushions the copper, reducing metal fatigue and the risk of micro-fractures caused by constant expansion and contraction. This resistance to thermal cycling and vibration helps prevent leaks and maintains system reliability in both residential and commercial settings.
Tip: For outdoor HVAC installations, always specify UV-resistant insulated copper tubes to ensure long-lasting protection and minimal maintenance under harsh weather conditions.
Insulated copper tubes are a staple in split air conditioners and refrigeration systems. These tubes carry refrigerant between the indoor and outdoor units, where temperature control is critical. The insulation prevents condensation on the copper surface, which helps avoid water damage and corrosion. It also maintains the refrigerant’s temperature, improving cooling efficiency. In refrigeration, insulated copper tubes help keep the cold chain intact, ensuring food safety and system reliability.
Outdoor HVAC installations face harsh environments—sun, rain, dust, and temperature swings. Insulated copper tubes excel here because their insulation protects against UV rays and physical damage. The insulation layer also prevents condensation that can lead to corrosion or mold growth. Whether on rooftops, exterior walls, or exposed piping runs, insulated copper tubes maintain system efficiency and durability longer than uninsulated alternatives.
Standard copper tubes remain suitable when insulation is applied separately or customized on-site. For example, in indoor environments with controlled humidity, bare copper tubes might suffice. Also, in high-temperature applications or specialized industrial HVAC systems, insulation may not be necessary. However, these tubes lack the built-in protection insulated types offer against condensation and thermal loss. Choosing between insulated and standard tubes depends on environmental conditions, installation preferences, and cost constraints.
Insulated copper tubes contribute to better indoor air quality by minimizing condensation that can foster mold and bacterial growth. Copper’s natural antimicrobial properties further inhibit microbes within the HVAC system. By maintaining consistent refrigerant temperatures and protecting tubing integrity, insulated copper tubes reduce leaks and system downtime. This reliability translates to fewer repairs and enhanced occupant comfort in both residential and commercial buildings.
Tip: For outdoor HVAC projects, always specify insulated copper tubes with UV-resistant insulation to protect system performance and extend service life under harsh weather conditions.
One of the main advantages of insulated copper tubes is the convenience of pre-applied insulation. This feature saves installers a significant amount of time and effort since they don’t have to wrap or attach insulation on-site. Pre-insulated tubes come ready to use, ensuring consistent insulation thickness and quality. This reduces the risk of gaps or uneven coverage, which can compromise energy efficiency and lead to condensation problems. The insulation also protects the copper during handling, minimizing dents or scratches that could affect performance.
Choosing the correct tube size is essential for maintaining system efficiency and preventing pressure drops. Tube diameter must match the HVAC system’s cooling or heating capacity. For example, smaller tubes (like 1/4 inch and 3/8 inch) suit residential systems with cooling capacities around 9,000 to 12,000 BTU/hr. Larger tubes (such as 5/8 inch or 7/8 inch) are better for commercial systems with capacities exceeding 42,000 BTU/hr. Using undersized tubing can cause excessive pressure loss, reducing refrigerant flow and system performance. Oversized tubes, meanwhile, increase material costs unnecessarily. Always refer to manufacturer guidelines or industry standards when selecting tube sizes.
Despite the protective insulation, installers must handle insulated copper tubes carefully. Avoid sharp bends or kinks that can damage the copper or compress the insulation, reducing its effectiveness. When cutting tubes, use proper tubing cutters to ensure clean edges and prevent deformation. Protect the insulation ends from moisture and dirt before connecting fittings or joints. If insulation gets damaged during installation, repair it promptly using appropriate insulating materials to maintain thermal protection and prevent condensation.
Insulated copper tubes typically cost more upfront than standard bare copper tubes due to the added insulation layer and manufacturing process. However, this initial investment often pays off through reduced labor costs, as insulation is already applied, speeding up installation. Moreover, energy savings from reduced heat loss and condensation prevention lower operating expenses over time. Maintenance costs also decrease since insulated tubes resist corrosion and damage better. When evaluating costs, consider the total lifecycle expenses, not just the material price, to make an informed decision.
Tip: Always plan tube sizing carefully and handle insulated copper tubes gently during installation to preserve insulation integrity and maximize HVAC system efficiency.
Copper stands out as a highly recyclable material, maintaining its quality through endless recycling cycles without losing properties. This recyclability supports a circular economy where copper from old HVAC systems can be recovered, melted down, and reused in new tubing. Recycling copper consumes significantly less energy compared to mining and refining virgin copper, reducing greenhouse gas emissions and conserving natural resources. By choosing insulated copper tubes, HVAC professionals contribute to sustainability efforts and reduce the environmental footprint of their projects.
Compared to plastic tubing options like PEX or CPVC, copper tubes offer clear environmental benefits. Plastics often rely on fossil fuels for production and are challenging to recycle due to cross-linking or chemical additives. Many plastic pipes end up in landfills, persisting for decades and contributing to pollution. Copper’s natural properties allow it to be fully recycled without degradation. Additionally, copper’s durability means fewer replacements, lowering waste generation. In outdoor HVAC applications, copper’s resistance to UV degradation further extends its useful life, unlike plastics that become brittle and fail prematurely.
Insulated copper tubes have a long service life, often lasting 50 years or more when properly installed and maintained. Their insulation protects against corrosion, UV damage, and physical wear, extending lifespan even in harsh environments. This durability means fewer replacements over the life of an HVAC system, reducing material waste and labor costs associated with repairs. Longer-lasting components also mean less frequent manufacturing demand, which indirectly lowers the environmental impact tied to production processes.
Incorporating insulated copper tubes into HVAC designs aligns with green building practices and sustainability goals. Their energy efficiency reduces HVAC system power consumption, which lowers carbon emissions from electricity generation. The tubes’ recyclability and durability support circular resource use and minimize landfill contributions. Moreover, copper’s antimicrobial properties help maintain indoor air quality, enhancing occupant health without relying on chemical treatments. Together, these factors make insulated copper tubes a smart choice for eco-conscious residential and commercial HVAC projects aiming to balance performance, cost, and environmental responsibility.
Tip: Prioritize insulated copper tubes in HVAC projects to boost system sustainability through energy savings, durability, and recyclable materials.
Insulated copper tubes greatly improve HVAC efficiency by reducing heat loss and preventing condensation. They protect systems from corrosion and UV damage, extending lifespan and lowering maintenance. Ideal for both residential and commercial use, these tubes ensure reliable performance in harsh environments. Choosing insulated copper tubes enhances energy savings and system durability. Future HVAC designs increasingly rely on these tubes for sustainability and efficiency. www.bodinsulation.com XLBAODI offers high-quality insulated copper tubes that deliver these benefits, supporting long-term HVAC success.
A: Insulated copper tubes are standard copper tubes wrapped with a foam or rubber insulation layer to prevent condensation and reduce thermal loss in HVAC systems.
A: They improve energy efficiency, prevent moisture damage, protect against UV rays, and reduce maintenance needs in both residential and commercial HVAC applications.
A: By reducing heat loss up to 75%, they maintain refrigerant temperature, lowering compressor workload and cutting energy costs.
A: Yes, they have a higher upfront cost due to insulation but offer long-term savings through energy efficiency and reduced maintenance.
A: Handle gently to avoid insulation damage, use correct tube size, and ensure insulation remains intact during cutting and fitting for optimal performance.
